Tactile Direction Indicators / (“TDI”)
Guide Bars (Vanguard “GuideStrip“)
Installed only by Licensed VANGUARD Installers
RAISED DIRECTIONAL BARS
SEAMLESS APPLICATION
Bonds with the Underlying Surface
ALWAYS NONSKID
Superior Adhesion &
Maintains Skid-Resistance
OUTLASTS THE
COMPETITION
Superior Adhesion &
Maintains Skid-Resistance
What makes VANGUARD GuideStrip the best Guide Bar Tactile Direction Indicator (TDI) choice?
Superior visibility
Multiple Colors Available
Nonskid (not just “slip resistant“), and for decades, not months.
Better adhesion / continuous installation; no screws, bolts or pins, ever)
Installs on granite, concrete, asphalt, steel or wood
Lower initial and back end cost
Impervious to fuels and solvents
Maintains original skid resistance for decades
Manufactured onsite from Liquid Plastic conforming to your surface
Follows every contour of the surface applied
Open to traffic in 90 minutes
Approved installers nationwide
5 year replacement warranty
Surface applied (sits above the applied surface)
Installation requirements: Clean and dry
Continuous installation! No seams (EVER).
No caulking needed (EVER).
Stronger than the surface applied to.
GuideStrip (Guide Strips) / Tactile Guidance Cues
The advantages to using the VANGUARD system are clear
All Vanguard Detectable Warnings / TWSI’s are liquid applied. This allows them to not only follow the existing contours of your applied surface, but more importantly, Vanguard products will continue to follow the contours of the surface over time. Because Vanguard products are installed using liquid plastic, Vanguard products “become one” with the surface, conforming to every nuance to the applied surface.
Always nonskid, and liquid applied, always “zero clearance” (same height as the applied surface itself).
No more replacing tiles due to freeze / thaw heave, no more trip hazards from edges curling or thick backing plates, and because VANGUARD products literally attach to every micron of the applied surface, water can’t get underneath allowing moisture to degrade the structural surface below.

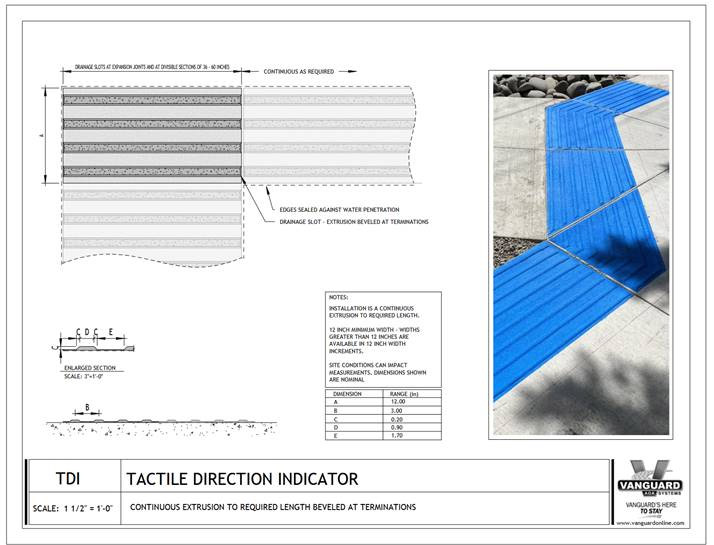

Due to variations in the surface applied to, GuideStrip may range from 0.18″ to 0.22″ in installed height.
Need Colors? We got them right here!
Now you can have ADA required visual contrast while emphasizing the aesthetics of your project with VANGUARD’S color options.
Become a Licensed VANGUARD Installer in your area!
Learn more about becoming an installer in your own region. Download our Booklet to read things over and see if becoming a trained Vanguard installer is for you.
